Automating Data Vault in Databricks can reduce time-to-value by up to 70%—and that’s why we hosted a recent WhereScape webinar to show exactly how.

At WhereScape, modern data teams shouldn’t have to choose between agility and governance. That’s why we hosted a live webinar titled “Building a Data Vault in Databricks with Streaming Tables”—designed to demonstrate how automation with WhereScape RED and 3D unlocks scalable, real-time Data Vault architectures within Databricks.

This session, led by Endika Pascual, provided data professionals—including data architects, engineers, BI analysts, DevOps teams, and data warehouse managers—with a firsthand look at metadata-driven modeling, automation, and ingestion pipelines. The webinar featured a live technical walkthrough and a robust Q&A segment with real-world questions from the audience.

Introduction: Streaming + Automation for Modern Data Vaults

In this session, we showcased how to create and manage a Data Vault using WhereScape RED and 3D within the Databricks environment. From metadata modeling to deployment and streaming data ingestion, the webinar demonstrated a fully automated workflow.

70% Faster Time-to-Value: How WhereScape RED and 3D Streamline Your Data Vault Architecture

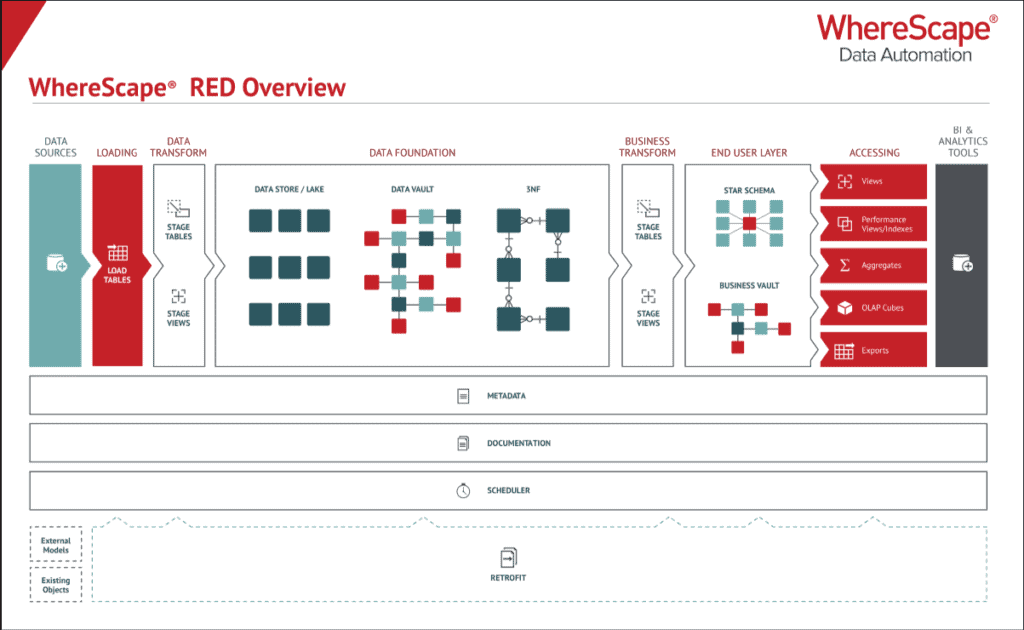

Endika introduced the foundation of our automation ecosystem: WhereScape RED and WhereScape 3D.

• WhereScape RED is our low-code automation platform for building, deploying, and orchestrating data warehouses and vaults. It generates all DDL and DML code automatically, manages version control, integrates scheduling, and supports multiple environments (Dev, UAT, Prod). It uses metadata templates to dynamically generate optimized code—such as Spark SQL or Python—for your target platform, like Databricks, Snowflake, Synapse, Microsoft Fabric, or Redshift.
• WhereScape 3D enables rapid discovery, profiling, and modeling of data across any JDBC/ODBC source, including flat files and APIs. It captures and maps metadata through discovery queries, applies user-defined model conversion rules, and lets data engineers visually design architectures such as Data Vault 2.0, 3NF, and star schemas. 3D is technology-agnostic—no database is required until deployment—and generates a metadata-rich XML for seamless handoff to RED.

Both tools store metadata in PostgreSQL repositories, ensuring complete transparency. All transformations, logic, and queries are fully exposed and editable—there are no black-box operations. Users remain in full control of how their pipelines are built and evolve.

To further accelerate and simplify Data Vault 2.0 adoption, teams can also leverage WhereScape Data Vault Express (DVE). DVE builds on RED and 3D to streamline model creation with wizard-driven templates, automate the generation of hubs, links, and satellites, and unify batch and real-time processing.

As a purpose-built tool for Data Vaults, DVE dramatically reduces complexity, supports metadata consistency across layers, and enables agile, insight-ready analytics with minimal rework.

Building Connections and Profiling Sources

Endika demonstrated how to establish connections using JDBC/ODBC, APIs, or flat files. WhereScape then executes SQL discovery methods to pull metadata. The profiling tools flag data quality issues, such as sparsely populated attributes. As Endika explained, “You’ll see your region is not very well populated, and we can use that to flag attributes for developers.”

Modeling and Automating Your Data Vault in 3D

With WhereScape 3D, users tag attributes by volatility level to generate hubs, links, and satellites:

• Hubs store business keys.
• Links represent relationships.
• Satellites store historical attributes.

Users can export the model to RED with one click for immediate deployment.

Code Generation for Automating Data Vault in Databricks

WhereScape RED transforms the 3D model into executable Databricks notebooks. It generates code to:

• Create streaming tables
• Upload and execute notebooks
• Manage ingestion pipelines

During the live demo, we showed how RED builds load, stage, and hub tables automatically, complete with hashing logic and change tracking.

Streaming Data Vault Pipelines in Databricks

Streaming tables are essential to automating Data Vault in Databricks, enabling near-instant ingestion from ADLS with zero manual scripting.

With Databricks, RED creates streaming pipelines that ingest files from Azure Data Lake (ADLS) as soon as they land. “The pipeline pushes the information through the whole lineage—as long as the whole lineage is included,” Endika noted. Pipelines can run continuously or on a schedule.

Scheduling, JSON Parsing, and Multi-Env Deployment

The session also covered:

• Scheduling options like Azkaban (included), Airflow, Data Factory, and Databricks Workflows
• JSON Parsing using automated flattening via templates
• API Support with full control over authentication, including OAuth
• Multi-environment promotion for Dev, UAT, and Production

Documentation & Visibility

WhereScape RED automatically generates full documentation—lineage, rules, scripts, and annotations—allowing teams to share metadata and logic with business users and developers alike.

Q&A Highlights about Automating Data Vault in Databricks

Q: How do you handle performance with large tables, such as 350 million records and 260 columns?

Endika shared, “Performance depends on your cluster configuration. You can set compute limits to meet processing requirements.”

Q: What happens if multiple business keys exist for the same entity?

“We hash business keys—regardless of the source—and store them in a single hub. The hash ensures uniqueness.”

Q: How does the system handle a value flipping back and forth?

“The satellite logs both versions with timestamps. The latest version becomes current.”

Q: Is this compatible with Microsoft Fabric?

“Fabric doesn’t support streaming tables,” Endika noted, “but WhereScape integrates through Data Factory for similar functionality.”

Q: Can you build fact tables from the Data Vault?

“Yes. We recommend building fact views using satellites and links. That’s in line with Data Vault 2.0 principles.”

Q: How do you parse JSON and handle API-based ingestion?

“We use a JSON parser to flatten nested structures with commands like LATERAL VIEW EXPLODE. APIs can be configured for GET/POST with full auth control.”

Q: Does the pipeline detect changes automatically?

“Yes. Streaming pipelines support real-time and batch ingestion and only process new or changed records.”

Conclusion & Takeaways: Automating Data Vault in Databricks

This webinar showed how WhereScape empowers teams to automate their Data Vault development using Databricks. From metadata-driven modeling to real-time ingestion and cloud deployment, WhereScape RED and 3D simplify complex data workflows.

Key Takeaways:

• Automate Data Vaults with confidence
• Stream data in real time with Databricks
• Deliver transparent, editable metadata and documentation
• Parse JSON and integrate APIs easily

Get Started with WhereScape: Watch, Join, and Explore

Whether you’re starting from scratch or modernizing legacy systems, automating Data Vault in Databricks with WhereScape ensures speed, consistency, and agility. If you missed the live session or want to revisit the insights, the full webinar recording is available to watch on demand now.

Don’t miss our upcoming session, “From Data Discovery to Deployment: Automating Star Schema Modeling in Microsoft Fabric,” on May 1st. Register Here!

Ready to see how WhereScape can streamline your data automation journey? Book a personalized demo with our team today and discover how RED and 3D can accelerate your time-to-value.

About the Presenter

Endika Pascual is a Principal Solutions Architect at WhereScape with deep expertise in Big Data, Business Intelligence, and Data Analytics. He specializes in designing modern data infrastructures and cloud-native solutions. Endika thrives in agile environments and is passionate about helping clients maximize the value of their data.
